| JDF5060GXW吸污车 主要技术参数 | ||||||||||||||||||||||||||||||
| 产品名称： | 吸污车 | 外型尺寸： | 5995×1950×2500(mm) | |||||||||||||||||||||||||||
| 底盘型号： | EQ1060TJ20D3 | 货厢尺寸： | ××(mm) | |||||||||||||||||||||||||||
| 总质量： | 6495(Kg) | 接近/离去角： | 19/13(°) | |||||||||||||||||||||||||||
| 额定质量： | 2700,2765(Kg) | 前悬后悬： | 1032/1663(mm) | |||||||||||||||||||||||||||
| 整备质量： | 3600(Kg) | 最高车速： | 95(km/h) | |||||||||||||||||||||||||||
| 发动机 | 发动机生产企业 | 排量(ml) | 功率(kw) | |||||||||||||||||||||||||||
| YC4F90-30 CY4102-C3F YN27CR YN30CR SD4BW70-3R 4D22E YCND27-90-30 YCND27-100-30 CY4100-E3F 4JB1TI |
广西玉柴机器股份有限公司 东风朝阳柴油机有限责任公司 成都云内动力有限公司 成都云内动力有限公司 江苏四达动力机械集团有限公司 安徽全柴动力股份有限公司 广西玉柴机器股份有限公司 广西玉柴机器股份有限公司 东风朝阳柴油机有限责任公司 成都成发汽车发动机有限公司 |
2659 3856 2672 2977 2545 2156 2659 2659 3707 2771 |
66 70 66 76 70 65 66 75 73 75 | |||||||||||||||||||||||||||
| 排放标准： | GB3847-2005,GB17691-2005国Ⅲ | |||||||||||||||||||||||||||||
| 轴数： | 2 | 前轮距： | 1506/1466(mm) | |||||||||||||||||||||||||||
| 轴距： | 3300 | 后轮距： | 1466(mm) | |||||||||||||||||||||||||||
| 轮胎数： | 6 | 轮胎规格： | 7.00-16,6.50-16,7.00R16,6.50R16 | |||||||||||||||||||||||||||
| 燃料种类： | 柴油 | 弹簧片数： | 8/9+5,6/8+4 | |||||||||||||||||||||||||||
| 轴荷： | 2595/3900 | 驾驶室乘人数： | 3,2 | |||||||||||||||||||||||||||
| 整车备注： | 介质:液态污物;密度:800千克/立方米;罐体有效容积:3.54立方米;罐体外形尺寸(长×直径)(mm):3600(其中直段长为3000)×1200;驾驶室准乘人数为3人时对应额定载质量为2700kg;驾驶室准乘人数为2人时对应额定载质量为2765kg;随底盘选装驾驶室;侧面防护及后下部防护装置材料材质:Q235,连接方式:焊接;后下部防护装置断面尺寸(宽×高):40×175(mm),后下部防护装置离地高度:530mm. | |||||||||||||||||||||||||||||

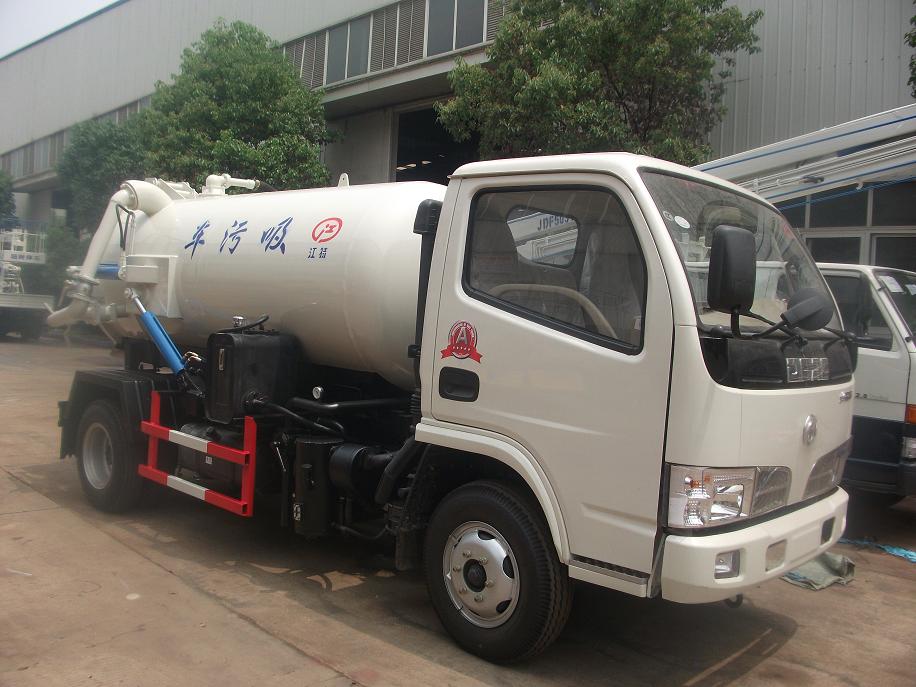

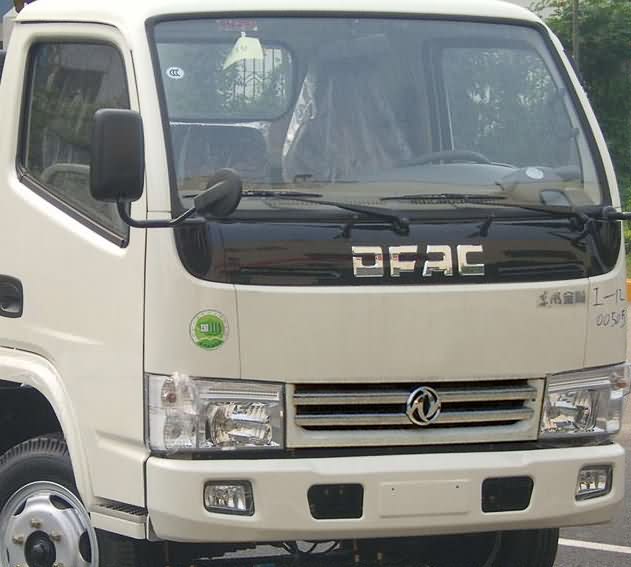

| 多方位图： |
| |||||||||||||||||||||||||||||
| 专用性能： | 公司专业生产东风小霸王吸污车、东风多利卡吸污车、东风轻卡吸污车、东风三平柴吸污车、东风140尖头吸污车、东风145吸污车、东风153吸污车、东风双桥吸污车、解放系列吸污车、欧曼系列吸污车、红岩系列吸污车、多功能吸污车等各类吸污车。用户也可自带底盘到我厂提供上装部件的生产改装。 吸污车专用部分由真空吸污泵、取力器、传动轴、水气分离器、油气分离器、多路换向阀、罐体、放污阀、视污窗、真空压力表、管网系统、液压系统等组成。 | |||||||||||||||||||||||||||||
| 环保公告： |
JDF5060GXW吸污车环保公告参数
| |||||||||||||||||||||||||||||
| 免征公告： |
JDF5060GXW吸污车免征公告
| |||||||||||||||||||||||||||||
| 需要更多资料及产品图片请直接与我公司联系，我们会为您提供服务! | ||||||||||||||||||||||||||||||
英文参数：
|
TRUCK MOUNTED VACUUM CLEANER | ||
|
Manufacturer Name |
HUBEI JIANGNAN SPECIAL AUTOMOBILE CO., LTD | |
|
Brand Name |
DONGFENG | |
|
Name of Model |
JDF5060GXW | |
|
Country Origin |
| |
|
Year of Manufacture |
2013 | |
|
TRUCK CHASSIS PARAMETER | ||
|
Manufacturer |
DONGFENG | |
|
Brand |
DONGFENG | |
|
Chassis Model |
EQ1060TJ20D3 | |
|
Spring Leaf No |
8/9+5 | |
|
Front Suspensions |
1032 mm | |
|
Rear Suspensions |
1488 mm | |
|
Front Truck |
1506 mm | |
|
No. of Axel |
2 nos. | |
|
Axel Load Front |
2600 kg | |
|
Axel Load Rear |
3895kg | |
|
Drive |
4 x 2 RHD | |
|
Driver’s Cabin Seat |
02 Persons | |
|
Cabin |
Single | |
|
Cabin Equipment |
Standard Panel, Intelligent Controlled System, FM | |
|
No. of wheel |
2 Front And 4 Rear Wheels And 1 Spare Wheel. | |
|
Tire Size: |
7.00-16 | |
|
Wheel Base |
3300 mm | |
|
Overall Length |
5500 mm | |
|
Overall Height |
2550 mm | |
|
Overall Width |
2000 mm | |
|
Ground Clearance |
250 mm | |
|
Curb Weight with Accessories |
3700 Kg | |
|
Gross Vehicle Weight |
6500 kg | |
|
Curb Weight without Accessories |
2665 kg | |
|
Turning radius |
7.0 Meter | |
|
VACUUM TANK PARAMETER | ||
|
Tank Shape |
Cylindrical | |
|
Vacuum Tank Capacity |
3000 Liters | |
|
Materials |
Stainless Steel | |
|
Grade |
304 | |
|
Thickness |
4mm | |
|
Operating System |
Hydraulic Motor | |
|
Sight Gauge. |
60 mm | |
|
Tipping & Dumping Angle |
43 Degrees At Rear. | |
|
Suction Head. |
7 Meter | |
|
Tank Hose Material |
Stainless Steel | |
|
Length of Hose Pipe |
2 Meter Each. | |
|
Tray Accommodation |
8 Nos. | |
|
ENGINE PARAMETER | ||
|
Manufacturer |
DONGFENG CHAOYANG POWER CO,. LTD., | |
|
Brand Name |
CHAOYANG | |
|
Model |
CY4102-C3F | |
|
Country Origin |
| |
|
Year of manufacture |
2013 | |
|
Engine type |
Four stroke | |
|
Intake form |
Turbo-Charged Inter Cooling | |
|
No. of cylinder |
4 cylinder | |
|
Cylinder Arrangement |
Inline | |
|
Displacement: |
3.856L | |
|
Fuel |
Diesel | |
|
Cooling System |
Water Cooled. | |
|
Emission Standard |
Euro-III | |
|
Engine Power |
95 HP @3200rpm | |
|
Steering |
Power Steering | |
|
Torque |
235@1800 rpm | |
|
Electrical System |
24 Volts; | |
|
Clutch : |
Single Plate, Dry Friction. | |
|
Transmission |
5 Forward & 1 Reverse, Synchromesh. | |
|
Brake: |
Vacuum Assisted Dual Circuit With Tandem Hydraulic Master Cylinder. | |
|
Parking Brake |
Exhaust Brake Coupled With Service Brake. | |
|
Suspension |
Semi-Elliptical. | |
|
Fuel Tank Capacity |
80 Liters. | |
|
VACUUM PUMP PARAMETER | ||
|
The Vacuum Pump Manufactures |
BATTIONI PAGANI POMPE S.p.A | |
|
Model |
MEC 4000 | |
|
Country Origin |
| |
|
Vacuum Pump Capacity |
94% | |
|
Load Time |
5 min | |
|
The Pump Operates By |
Hydraulic Motor. | |
|
Hydraulic Drive Type |
Vehicle Engine Through PTO | |
|
Sewage Loads Suction Speed |
4350 l/min | |
|
Rotation Speed |
1400 rpm | |
|
Ball Valve |
4 Inch With Stack Pipe. | |
|
Outlet Ball Valve |
4 inch. | |
|
Charge Intake Pressure |
2.5 bar@ 700mm Hg | |
|
Discharge Pressure |
2.5 bars@ 700mm Hg | |
|
Inside Pressure Entire Discharge |
1 bar @ 700mm Hg | |
