GENERAL INFORMATION |
PRODUCT NAME |

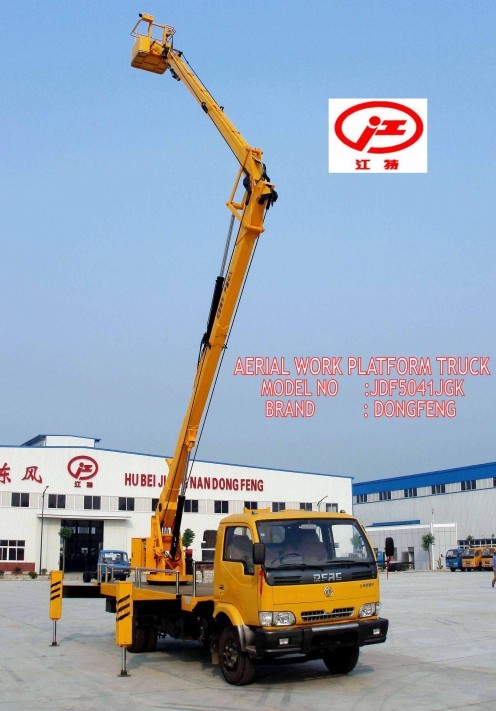

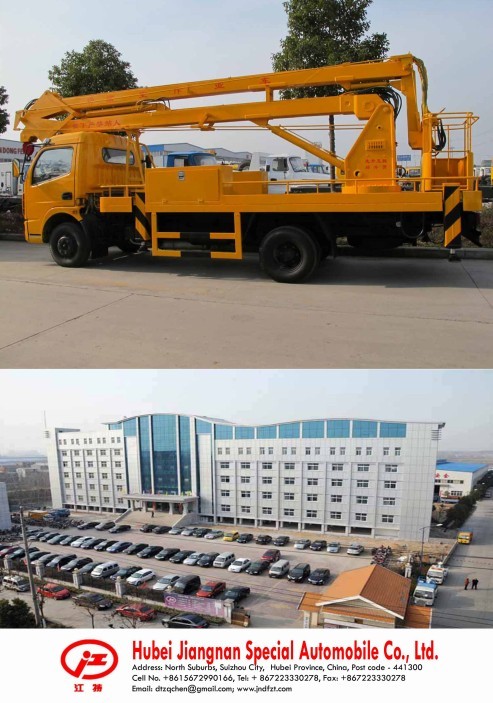

DONGFENG AERIAL WORK PLATFORM TRUCK | ||
|
Brand |
DONGFENG | |||
|
Model |
JDF5041JGK | |||
|
Country of origin |
CHINA | |||
|
TRUCK PARAMETER | ||||
|
Max working height |
12m | |||
|
Max working radius |
5m | |||
|
Slewing range |
360 degree, 12 degree/ second | |||
|
Boom |
Folding boom with flexible | |||
|
Rated load of platform |
200kg | |||
|
Color |
Yellow (Option: White) | |||
|
Outrigger |
4 | |||
|
MAIN TECHNICAL |
Drive type |
4*2 | ||
|
Wheel base |
2800mm | |||
|
Overall length |
6460 mm | |||
|
Overall width |
2000 mm | |||
|
Overall height: |
2990mm | |||
|
Gross Vehicle Weight |
4495 kg | |||
|
Curb Weight |
4170 kg | |||
|
Maximum traveling speed |
95km/h | |||
|
Ground clearance |
200 mm | |||
|
Turning Radius |
6000mm | |||
|

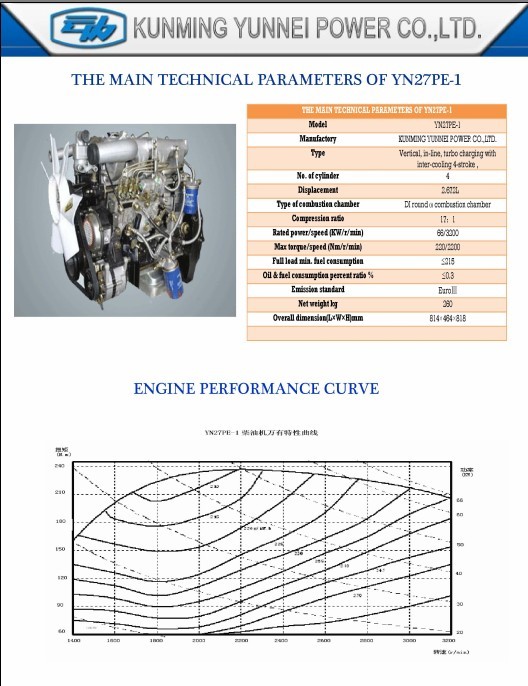

ENGINE |
Manufacturer’s |
KUNMING YUNNEI POWER CO., LTD | ||
|
Brand |
||||
|
Model |
YN27PE-1 | |||
|
No. of cylinder |
Four cylinder | |||
|
No. of stroke |
Four stroke. | |||
|
Type |
Turbo charged inter-cooling water-cooled. | |||
|
Fuel system |
Direct fuel injection type diesel engine. | |||
|
Maximum power output |
66 KW | |||
|
Speed |
3200rpm | |||
|
Maximum Torque |
220N-m. | |||
|
Maximum torque speed |
2200 rpm. | |||
|
Displacement |
2672 cc. | |||
|
Emission standard’s |
China – III (Euro – III) | |||
|
CHASSIS |
Manufacturer’s |
DONGFENG MOTOR CO., LTD | ||
|
Brand |
DONGFENG | |||
|
Model |
EQ1041SJ80DD | |||
|
Pay load |
Compact capacity truck chassis 2.5 ton | |||
|
Year of manufacturing |
2013 | |||
|
Country of origin |
China | |||
|
TRANSMISSION |
Synchromesh gearbox with manual gear shift; five forward one reverse synchromesh gear | |||
|
Clutch Type |
Hydraulic operate single dry plate with air assist booster | |||
|
AXLE |
Front axle |
Reverse Eliot I-beam semi-elliptical alloy steel heavy duty multiple leaf spring, axle load 1800kg. | ||
|
Rear axle |
Hydraulic double acting telescopic shock absorbers semi-elliptical alloy steel, heavy duty leaf multiple spring, axle load 2695Kg. | |||
|
STEERING |
Type |
Re-circulating ball nut with variable gear | ||
|
Adjustment of wheel |
Tilt and telescopic | |||
|
Steering wheel position |
Right hand drive | |||
|
BRAKE |
Service brake |
Drum Brake activated service brake with hydraulically operated brake pad or shoe. | ||
|
Parking brake |
Independent mechanical hand brake | |||
|
Assistant brake |
Hydraulic brake | |||
|
FUEL |
Type of fuel |
Diesel | ||
|
Fuel tank capacity |
80 L | |||
|
Fuel consume / 100 km |
7 L | |||
|
Hydraulic oil grade |
10W/30CD | |||
|
Hydraulic oil tank capacity |
6 L | |||
|
CABIN |
All steel construction, full floating suspension cab, 3 Seats, Window lifting system Electric power. | |||
|
TIRE |
Size |
6.50-15 ; No. of tire: 6+1 | ||
|
ELECTRICAL |
Heavy duty battery 24volt, alternator and starter | |||
|
BEAM LIFTER PARAMETER | ||||
|
HYDRAULIC RAM AND PUMP |
The hydraulic pump for the operation of the beam is piston type, directly powered by the truck engine, transmission through power take off (PTO) mechanism with a speed of 1500rpm and hydraulic pressure at 160bar. | |||
|
BEAM |
The beam is hydraulic actuated and controlled, articulated type with extension booms, constructed of light but strong steel section. The whole assembly is mounted on a strong large diameter column structure. Working Height: 12 meters from ground to floor of cage. | |||
|
STABILIZER |
Hydraulically operated and fitted with the truck body, flush with the chassis when retracted. | |||
|
BEAM LIFTER |
Hydraulic beam lifter is bucket type ,mounted on the folding arm ,the beam is articulated boom ,type 200KG safe loading in the beam lifter at the highest cage height | |||
|
CONTROL SYSTEM |
Dual controls for beam lifting operation-control at base and control at operator’s cage, the equipment shall have remote control facility to operate from any position far than 60ft radius. | |||
|
Slewing Rotary |
360 degrees,12 degree/second | |||
|
OPERATOR CAGE |
Made of reinforced fiber glass insulated to 2200V, non-slip type floor, Hand grips at suitable location and drain holes | |||
|
Bucket size |
1100*620*1100 mm | |||
|
REAR DECK |
Non-Slip Type With Checker Plates | |||
|
Deck height |
470mm | |||
|
Deck length |
2850mm | |||
|
SAFETY |
ACCESSORIES | |||
|
· Device to safeguard operator in case of hydraulic system failure. · Over load protection system. · Emergency stop switches at base and operator’s cage. High grade insulation of bucket · Emergency hand operated hydraulic pump to stop the equipment in case of engine failure. · Flash light and warning lamp system. · Safety belt for operator with anchorage at operator’s cage. |
ü Parking light, reversing light, traffic indicators, charging lamp. ü Engine oil level gauge, Oil temperature gauge; Fuel level indicator, Speedometer. ü Horn, Rear view mirror. ü Spare wheel with tyre, Mud-guard flaps. ü Lockable battery box, ü Jack and wheel wrench, Standard tools for emergency maintenance. | |||
|
Ø In accordance with, our established policy of constant improvement, we reserve the right to amend this specification at any time without notice. | ||||
